Description

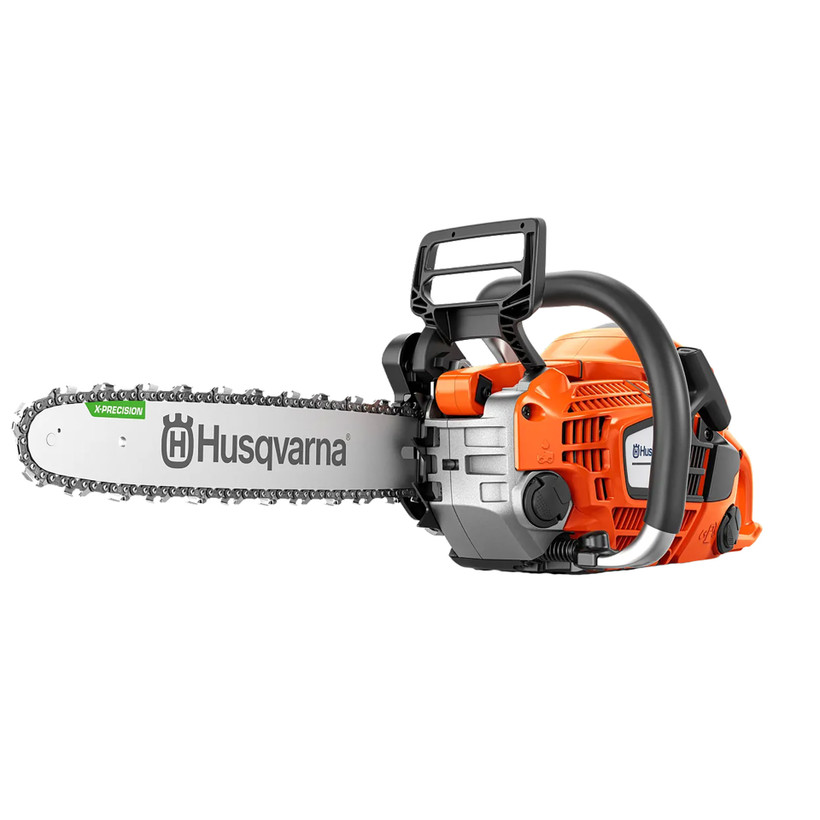

Husqvarna 540 XP® Mark III is a nimble and lightweight gas chainsaw in the 40cc class, designed for professional tree care and thinning operations. The powerful engine combined with the optimal SP21G chain delivers impressive cutting capacity with fast acceleration. The easy, reliable starts – cold as well as hot – and smooth maneuverability make this chainsaw a favorite for any tree care team.
Details
- High cutting capacity
- Always optimized
- Felling sight to last a lifetime
- Optimized saw body
- Air Injection filters 98% of incoming dust
- Connectivity ready
- Flip-Up Fuel Cap
- LowVib® Technology
- Retained bar nut
- Retained starter screws
| Engine | 14" | 16" |
| Chain speed at max power | 65.6 fts | 65.6 fts |
| Cylinder displacement | 39.1 cm³ | 39.1 cm³ |
| Power output1 | 2.6 hp | 2.6 hp |
| Torque, max. | 1.9 Nm | 1.9 Nm |
| Torque, max. at rpm | 7,500 rpm | 7,500 rpm |
| Clutch engagement speed (±120) | 4,400 rpm | 4,400 rpm |
| Electrode gap | 0.03 in | 0.03 in |
| Idling speed | 3,000 rpm | 3,000 rpm |
| Ignition module air gap | 0.01 in | 0.01 in |
| Maximum power speed | 10,200 rpm | 10,200 rpm |
| Oil pump type | Adjustable flow, no flow at idle | Adjustable flow, no flow at idle |
| Spark Plug | NGK CMR7H | NGK CMR7H |
| Equipment | ||
| Recommended bar length, min | 12 in | 12 in |
| Pitch | 3/8" mini | 3/8" mini |
| Recommended bar length, max | 16 in | 16 in |
| Chain type | S93G | S93G |
| Bar length | 35 cm | 40 cm |
| Bar length (inch) | 14 in | 16 in |
| Sprocket type | Spur 6 | Spur 6 |
| Gauge | .050" | .050" |
| Dimensions | ||
| Weight (excl. cutting equipment) | 9 lbs | 9 lbs |
| Sound and noise | ||
| Sound pressure level at operators ear | 103 dB(A) | 103 dB(A) |
| Sound power level, guaranteed (LWA) | 112 dB(A) | 112 dB(A) |
| Sound power level, measured | 111 dB(A) | 111 dB(A) |
| Vibration | ||
| Equivalent vibration level (ahv, eq) rear handle | 5.1 m/s² | 5.1 m/s² |
| Equivalent vibration level (ahv, eq) front handle | 3.7 m/s² | 3.7 m/s² |
| Lubricant | ||
| Oil tank volume | 0.49 US pint | 0.49 US pint |
| Lubricant type (Engine) | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 |
