Description

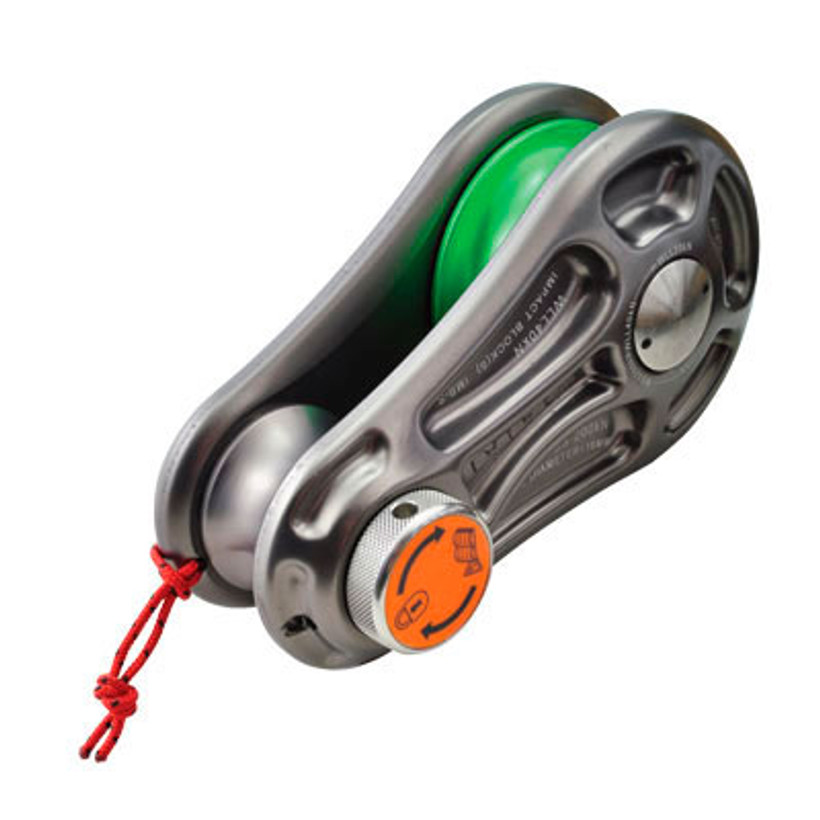

DMM Small Impact Rigging Block
Details
DMM Impact Black User Guide (PDF)
DMM Small Impact Rigging BlockDesigned for use in the tree care industry when loads may be dropped into rigging with considerable impact forces. Rounded edges to cheekplates maintain low rope abrasion when rope is fed ‘unfair’ Fairlead flares help maintain high working efficiency. High efficiency oilite bushings to reduce friction.Specifications:Min breaking strength: 200 kNRope capacity: 5/8"Weight: 4.1 lbs.Dimensions: 7.08" x 3.94" x 3.15"
- Color:
- Green/Gray
- Item Status:
- Active
- Certifications:
- Yes
- Height:
- 7.08" (180mm)
- Manufacturer Part Number:
- IMB-S
- Country of Manufacture:
- GB
- Material:
- Aluminum
- Tensile Strength:
- 17,100 lbs (76 kN)
- Width:
- 3.1 in
- WLL:
- 1750 lbs ( 7.7 kN )
- Sheave Diameter:
- 3 1/4"
