SMC

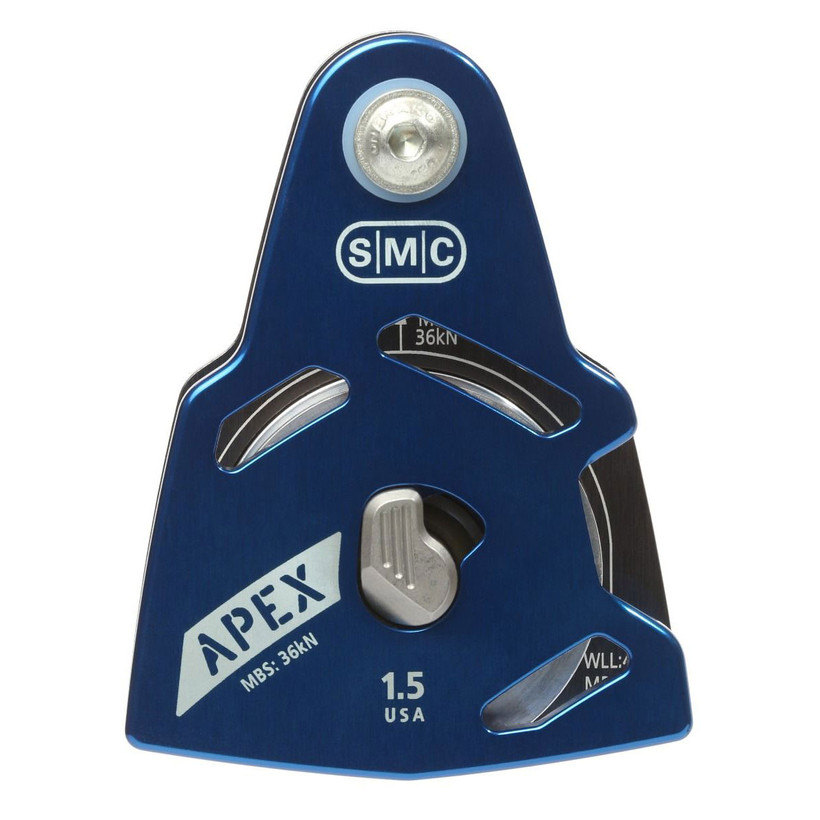

SMC Apex Direct 1.5 Pulley

$92.99
SKU:
99395
UPC:
870449001124

The Apex Direct is SMC’s fresh approach to the conventional pulley.

Active slide of SMC Apex Direct 1.5 Pulley

Description

The Apex Direct is SMC’s fresh approach to the conventional pulley.

Details


SMC's Apex Direct is specifically designed to be used with soft attachments like prusiks, slings, and soft shackles. Used in this manner, the Apex Direct aligns the rope with the direction of the pull just like a swivel pulley does. It’s compact and over 50% lighter than a comparable swivel pulley/locking carabiner combination.

The Apex Direct is mid-line attachable and features one handed operation that utilizes a low-profile, patented, triple-action lock mechanism. This lock is operated by three distinct actions: pivot the lock button, depress it, then swing open the side plate. Simply closing the side plate re-engages the lock mechanism and solidly secures the rope. The operation is intuitive and ergonomic.


Features

  • Efficient sealed bearings
  • PMP side plates - designed to be prusik minding
  • Material: Aluminum, Stainless Steel
  • Finish: Anodized, Blue/Grey
  • Dimensions: 3.8” x 2.9”
  • Weight: 7.3oz (208g)
  • MBS: 38kN
  • WLL: 9.5kN
  • Rope size: up to 13 mm
  • Apex 1.5 Sheave Major Diameter: 2.0”
  • Apex 1.5 Sheave Tread Diameter: 1.5”
  • Sheave Material: Aluminum
  • MADE IN USA
Manufacturer Part Number:
165110
Country of Manufacture:
US
